60L Accumulator mitsoka milina mamolavola

Model:KGB90AP

Ho an'ny KGB9010AP, ny Accumulator 60L mahomby 60L dia mitsoka milina mamolavola manasongadina sosona roa na loko milina avo roa heny. Natao manokana ho an'ny rindran-tsarimihetsika roa sosona sy misy loko miloko avo roa heny, toy ny tabilao misy loko milina / fitoeram-pamokarana indostrialy / tavoahangy 60L, miantoka ny fahatokisana maharitra sy ny tahiry maharitra.

Boky: 60LLanja: 15T

Alefaso ny fanontaniana

Mombamomba ny vokatra Specification Application

KGB9090p afaka mifanentana amin'ny sosona roa sosona na fitakiana famokarana loko roa vokatra vokatra.
Dia ahitana ny moog controlls 18 mahery, sandry robot, ary tsofina ambany System, mampitombo ny vokatra vokatra sy ny kalitaon'ny vokatra. Ity milina versatile ity dia mety amin'ny fampiharana isan-karazany, ao anatin'izany ny famoretana simika Ny vahaolana milina, ny fanentanana plastika mitsoka ny fizotran'ny milina milina,.

Endri-javatra sy tombony

Ity modely ity dia ny bobongolo fanokafana sy fanakatonana iray, mampiasa tie rod Ny molam-pamokarana famaranana sy fihoaram-pefy sy ny fanakatonana ny solomieran'ny solika solika clamping
Seriman-doha Store Cylinder maty
Boky ambony indrindra 60l
Fotoolbox mety tsara, sns.
Mampiasa teknolojia tsy manam-paharoa, rafi-pandoana famolavolana famandrihana, famafazana lehibe Force, haingam-pandeha haingana haingana, tsingerin'ny vokatra fohy

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB90AP
Specifications
1	Max container capacity	60 L
2	Output(dry Cycle)	500 PC/HR

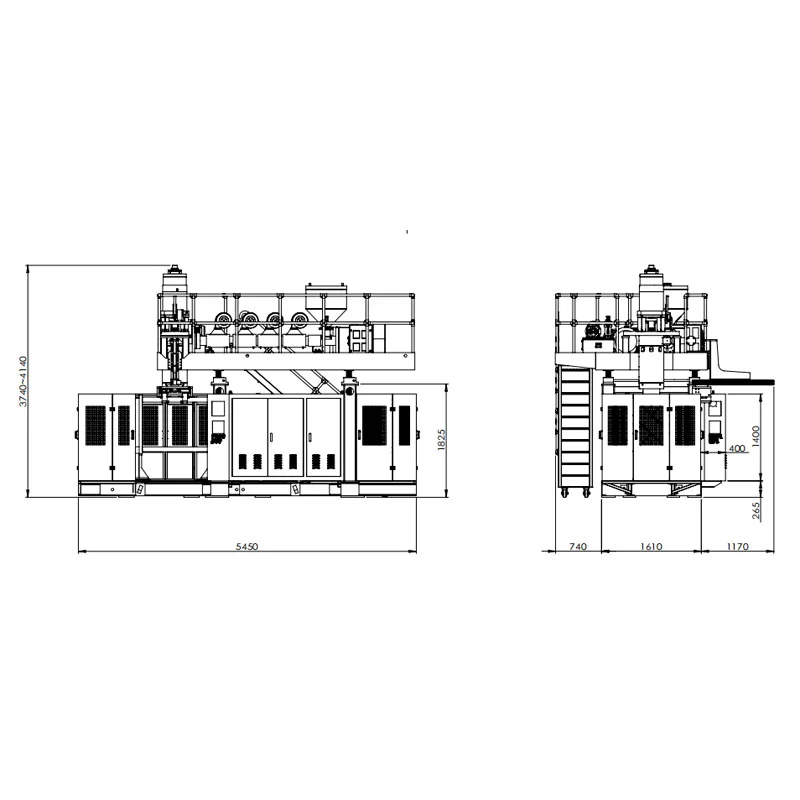

3	Machine Dimension(L×W×H)	5.45 M x 3.5 M x 4.2 M
4	Machine weight	15T
Clamping Unit
1	Clamping force	280 KN
2	Mold platen size(W×H)	960 MM x 980 MM
3	Platen openingstroke	450 MM -1050 MM
4	Platen moving stroke	500 MM
5	Max mold size(W×H)	700 MM×980 MM
6	Mold thickness	460 MM -550 MM
Power
1	Servooil pump motor power	18.5 KW
2	Servo pump displacement	150 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	1 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	90 L/min
7	Average energy consumption	35 KW - 45 KW
Extruder unit
1	Screw diameter	2*70 MM
2	Screw L/D ratio	24 L/D
3	Melting capacit for HDPE	130 Kg/hr - 160 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	17.6 KW
6	Screw fanpower	0.5 KW
7	Extruder motor power	2*22 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	26.8 KW
3	Maxdie-pin diameter	320 MM
4	Accumulator capacity	6.6 L
5	(PE)Accumulator weight	4.95 KG
